JSON Format

The clock JSON format is minimal. Here is a basic example:

{
  "name": "Name of Clock",
  "description": "Description of the clock."
  "clock_face": [
  {
      "shape": "circle",
      "circle_radius": 1,
      "x": 0.0,
      "y": 0.0,
      "color": "#FFFFFF"}
  ],
  "second_hand": [
  {
      "shape": "rectangle",
      "color": "#FF0000",
      "rectangle_fx": -0.01, "rectangle_fy": -0.99,
      "rectangle_tx":  0.01, "rectangle_ty":  0.10
    }
  ],
  "minute_hand": [
    {
      "shape": "rectangle",
      "rectangle_fx": -0.016, "rectangle_fy": -0.99,
      "rectangle_tx":  0.016, "rectangle_ty":  0.10
    }
  ],
  "hour_hand": [
    {
      "shape": "rectangle",
      "rectangle_fx": -0.016, "rectangle_fy": -0.69,
      "rectangle_tx":  0.016, "rectangle_ty":  0.10
    }
  ]
}

clock object keys	key description
name	Name of the clock.
description	Description of the clock.
clock_face	List of shapes for the clock face.
second_hand	List of shapes for the second hand. It should be oriented towards 12:00 and will be rotated.
minute_hand	List of shapes for the minute hand.
hour_hand	List of shapes for the hour hand.

JSON Shapes Schema

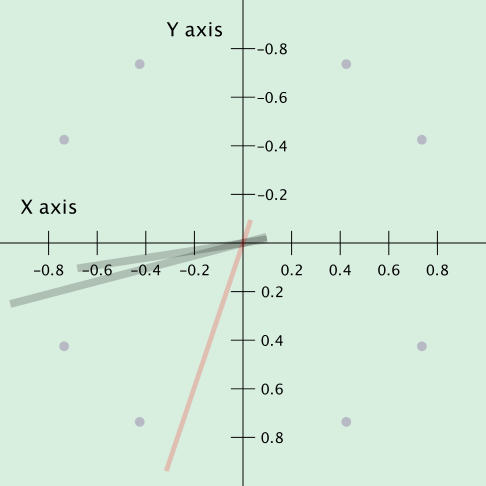

Key Characteristics of the Coordinate System

Origin: The origin is in the center of the clock face.
X-axis: The x-values increase as you move to the right. This is the same as a standard Cartesian coordinate
system.
Y-axis: The y-values increase as you move down. This is the opposite of a standard Cartesian system, where
y-values
increase as you move up. This is consistent with computer screens and visual displays.
Drawing Area: The radius of the clock face is 1.0. The application will scale that clock if the user increases the
size.

There are 4 shapes that can be used to construct the clocks: "rectangle", "polygon", "text", "circle", "text_ticks".

shape object keys	key description	applicable shapes
shape	String with the following possible string values: "rectangle", "polygon", "text", "circle", "text_ticks".	all
x	x position of the shape.	all but polygon
y	y position of the shape.	all but polygon
color	shape color either format #RRGGBB or #AARRGGBB when alpha channel is desireed.	all
ticks	The shape will repeat around the clock the number of ticks (whole number >= 2 and <= 60).	all
text	text string to draw.	text
text_font	font for text.	text, text_ticks
text_size	font size for text. The clock radius is always 1.0. "size": 0.15 means that at a 200×200 pixel window, the rendered font size will be 15px. Larger window sizes scale the font proportionally.	text, text_ticks
text_styles	font styles for text (separated by commas): "bold" or "italic".	text, text_ticks
text_rotation	rotation of the text (number > 0 and < 1.0). 0.25 is 3:00, 0.50 is 6:00, 0.75 is 9:00.	text, text_ticks
text_ticks_elements	array of strings to be evenly spaced out around the clock starting in the "noon" position.	text_ticks
circle_radius	radius of the circle.	circle
rectangle_fx	from x position of the rectangle (number >= -1.0 and <= 1.0).	rectangle
rectangle_fy	from y position of the rectangle (number >= -1.0 and <= 1.0).	rectangle
rectangle_tx	to x position of the rectangle (number >= -1.0 and <= 1.0).	rectangle
rectangle_ty	to y position of the rectangle (number >= -1.0 and <= 1.0).	rectangle
polygon_points	list of points. Each point is a JSON object with x and y key-values.	polygon
